Mean Well
Wiring Type for Harsh Environment Power Supply
HEP-1000-W
- Fanless and fully-potted design for harsh environment
- PFC design and High efficiency up to 96%
- Wide working temperature range : -40~+70℃
- Withstand 10G vibration test
- Built-in 2/3 stage charging curves and programmable curve
- Output voltage and constant current level programmable
- Protections : Short circuit / Overload / Over voltage / Over temperature
- Built-in PMbus and CANBus protocal (optional)
- Built-in DC OK active signal and 12V auxiliary power output

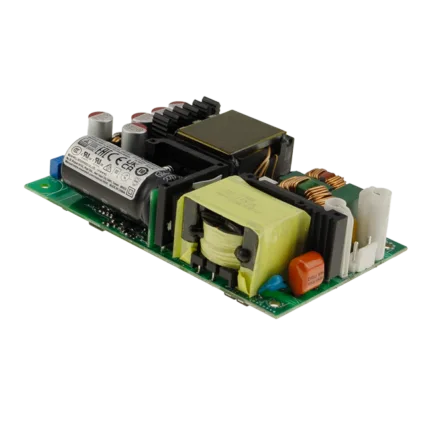

4" x 2" Ultra Low Profile PCB Type Power Supply
LOP-300
- MEAN WELL patent number ZL 202223277512.1
- Standard universal ultra low profile dimensions 4″” x 2″” x 1″” (L x W x H)
- 0~264Vac input and built-in PFC, no-load standby <0.5W
- Passed international certifications in multiple fields (ITE/Medical/Industrial/Household)
- Comply with 2xMOPP, suitable for Type BF medical applications
- Delivers 150% peak power for up to 3 seconds
- Suitable for Class I or Class II systems
- Operating temperature -40~+80℃
- Protection functions: Short Circuit, Overload, Overvoltage, Over Temperature
- Extremely low leakage current (<500µA to ground, <70µA to contact)
- Can operate at an altitude of 5,000 meters
- Built-in 12V/0.5A auxiliary power supply
Multiple-Stage Constant Power/Constant Voltage LED Driver
XLC-60-H-S
XLC-60 Series is a 60W with constant power and constant voltage out put LED driver. It can operate from 110~305VAC and output current ranging between 900mA to 1700mA selectable by DIP switch or NFC setting. Thanks to high efficiency up to 90%, it is able to operate for -25℃~90℃ case temperature under free air convection. XLC-60 is designed based on latest safety regulations with 3 in 1 and DALI-2 dimming. XLC-60 can also be adjusted for brightness with a push button as a simple way dimming, so it provides more flexibility for LED Lighting application.
